standard seaworthy packing suitable for long-distance transportation.
30 days after getting the 30% down payment
IYJ-C series hydraulic mooring winch mainly consists of hydraulic motor, planetary gearbox, band brake, clutch, drum, warping head (optional), valve block with braking and overload protection function. Due to fitted with valve block, the design of HPU can be simplified, and reliability of drives can be improved. The winch could have constant tension function upon request.
1. High startup efficiency and working efficiency. Compared with traditional mooring winches, total transmission efficiency of this winch is improved by 6~10% and energy loss is reduced because we design closed type planetary gearbox instead of open gear, and we use rolling bearing instead of tegular sliding bearing.
2. compact design
3. minimum maintenance and one year warranty
4. wide line pull range up to 100 ton
5. Tailored solutions to meet customer's specific needs.
6. A range of accessories such as rope spooling device and protection guard are available on request.

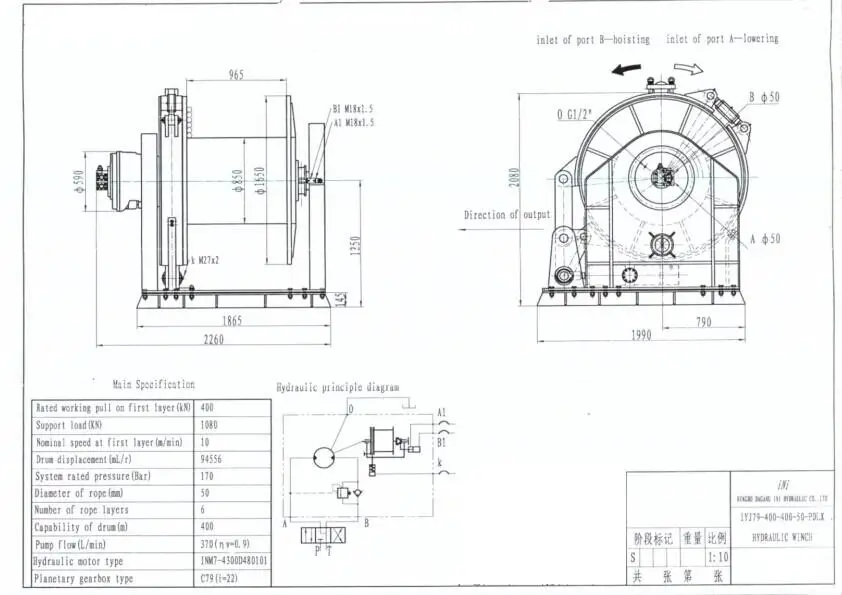

Outline drawing of 40 ton hydraulic mooring winch / hydraulic marine winch
Specification (can be revised to meet customer's specific needs.)
1. One year warranty from delivery
2. Free components for replacement within warranty period
3. Professional solution provider
4. Free technical support at any time
5. Customer training is available.
6. On-site installation and commissioning is available.
Established in 1996, we're one of leading manufacturers in China who are specialized in designing and manufacturing hydraulic winches, hydraulic motors, hydraulic slewing drives, planetary gearboxes, travel motors and wheel motors, hydraulic capstans, hydraulic power units, and hydraulic pumps.
With strong research and development capability, we have achieved 14 invention patents and 30 practical innovation patents. Meanwhile, we have more than 250 sets of advanced production and inspection equipment to ensure the quality of our products.
Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery, Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry, as well as Environmental Protection and other industries.
As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing market share worldwide. Our products have been exported to:
-Europe: UK, Austria, Netherlands, Germany, Sweden -North America: USA, Canada -South America: Brazil, Argentina -Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and other countries in the world.
Packaging & Shipping
Q1: What's your MOQ?
Answer: 1 piece.
Q2: What information should I provide to you before you could recommend a suitable winch and quote for me?
Answer: In order to recommend a most suitable model to meet every customer's specific need, we need to know:
Intended application of the winch (including working condition)
line pull (t)
line speed (m/min)
drum capacity/rope length (m)
rope diameter ( if have)
hydraulic system pressure and pump flow ( if have)
