Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: INI
  • Model Number: IYJ-L series free fall winch
  • Power Source: Hydraulic
  • Application: compaction machine
  • Capacity: up to 30 ton
  • clutch: hydraulic clutch
  • brake: automatic safefail brake
  • customer inspection upon delivery: available
  • third party inspection: available

Packaging & Delivery

Packaging Details standard seaworthy packing suitable for long-distance transportation.
Delivery Time 30 days after getting the 30% down payment



Product Description



  • Product Structure

Free fall winch is our patent product.

This series hydraulic winches consist of planetary gearbox, hydraulic motor, wet type brake, valve block, drum, frame and hydraulic control clutch.

The winches can get two speed if fitted with variable displacement hydraulic motor.

When fitted with hydraulic axial piston motor, the working pressure and power can be greatly improved.

The final stage of the series is fitted with a hydraulic clutch to get free fall function when the hook is empty. So the working efficiency can be improved.





  • Main Features



1. Safe and reliable performance

2. high starting& working efficiency

3. Reliable operation with little noise

4. long lifetime

5. Low maintenance relieves your anxiety





  • Application



compaction machine, pipe layers, crawler cranes, vehicle cranes, grab bucket cranes, crushers and so on.

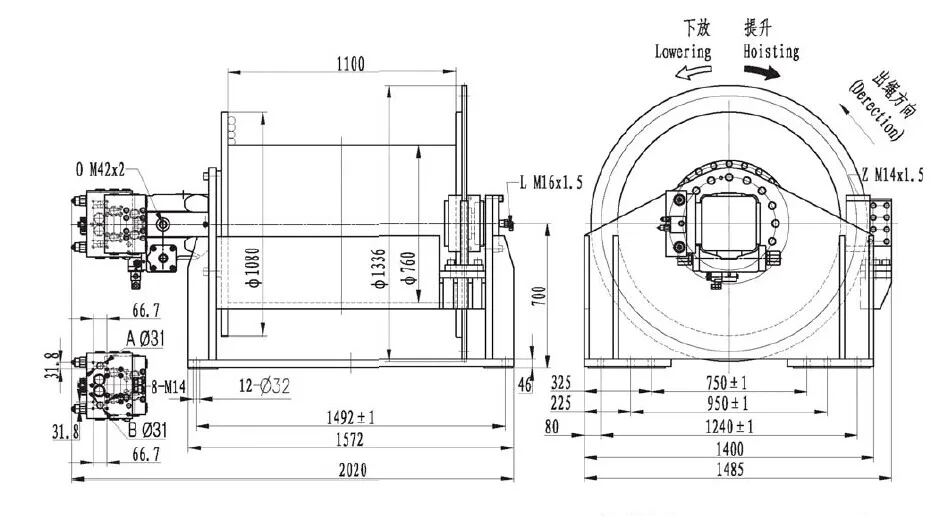

  • Outline drawing

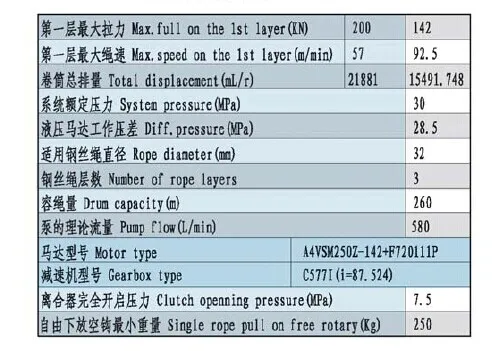

  •  Specification (can be revised to meet customer's specific needs.)



Our Services

1. One year warranty from delivery

2. Free components for replacement within warranty period

3. Professional solution provider

4. Free technical support at any time

5. Customer training is available.

6. On-site installation and commissioning is available.



Company Information



  •  Company Introduction




240,000 m3, 700 employees, ISO9001:2008 & ISO14001:2004 certified.



Established in 1996, we're one of leading manufacturers in China who are specialized in designing and manufacturing  hydraulic winches, hydraulic motors, hydraulic slewing drives,  planetary gearboxes, travel motors and wheel motors, hydraulic capstans, hydraulic power units, and hydraulic pumps.

With strong research and development capability, we have achieved 14 invention patents and 30 practical innovation patents.
Meanwhile, we have more than 250 sets of advanced production and inspection equipment to ensure the quality of
our products.


Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery,
Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry,
as well as Environmental Protection and other industries.

As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing
market share worldwide.  Our products have been exported to:



-Europe: UK, Austria, Netherlands, Germany, Sweden
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and other countries in the world.





  •  Factory overview



  •   Manufacturing Machines

  •  Inspection Machines

  •  Certification



Packaging & Shipping







FAQ

Q1: What's your MOQ?

Answer: 1 piece.



Q2: What information should I provide to you before you could recommend a suitable winch and quote for me?

Answer: In order to recommend a most suitable model to meet every customer's specific need, we need to know:

  • Intended application of the winch (including working condition)
  • line pull (t)
  • line speed (m/min)
  • drum capacity/rope length (m)
  • rope diameter ( if have)
  • hydraulic system pressure and pump flow ( if have)
  • other special  requirements
